Cabinet Door Clearance Guide for Fit-Out Plans

A cabinet layout can fit perfectly within the plan dimensions and still fail the moment its doors are opened. That is why a cabinet door clearance guide belongs in design development, not at the shop drawing review stage. Clearance is not simply the gap between a door and the cabinet opposite it. It is the operating space required for the door, the user, adjacent appliances, projecting hardware, and the work that happens in front of the cabinet.

For interior designers and architects, the objective is to document usable access rather than nominal fit. This requires checking cabinet operation in elevation, section, and plan, then coordinating the result with appliance schedules, circulation routes, accessibility requirements, and the selected hardware.

What cabinet door clearance actually measures

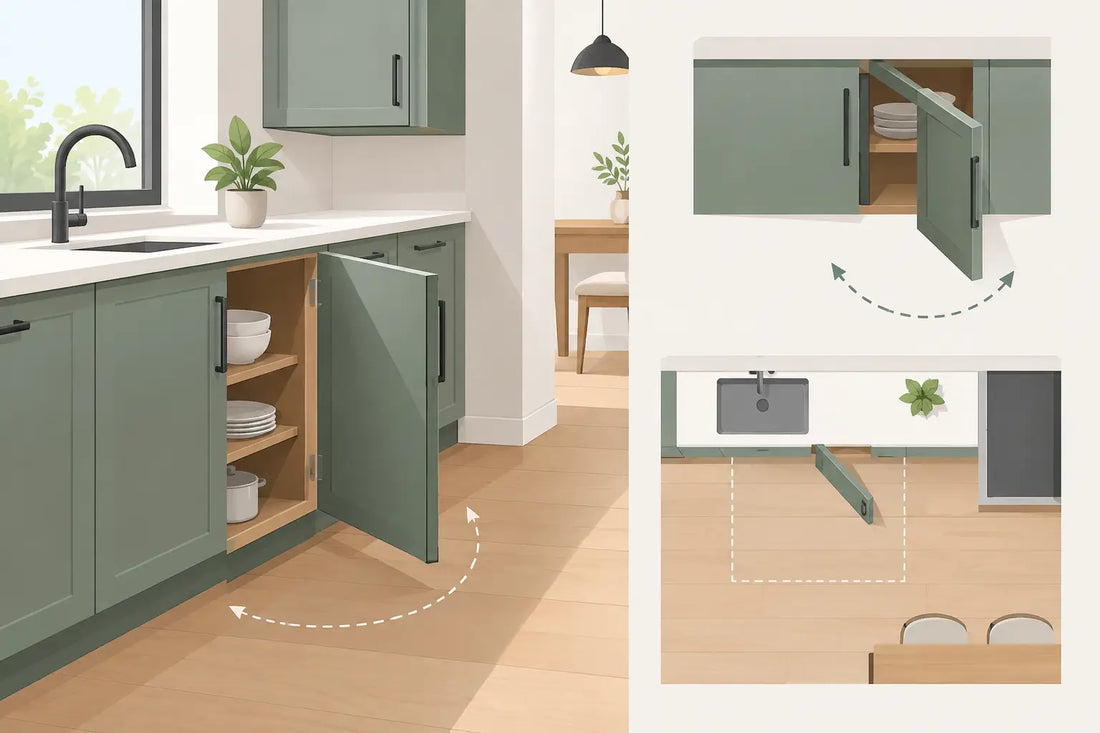

Cabinet clearance has three related dimensions. The first is door swing: the arc created as a hinged door moves from closed to open. The second is operational clearance: the open area needed for a person to reach shelves, pull out a tray, or load an appliance. The third is circulation clearance: the remaining route for someone passing through the room while that function is in use.

These dimensions are often confused because they overlap in plan. A 24-inch-deep base cabinet with a 24-inch-wide hinged door may be physically capable of opening in a 36-inch aisle. That does not mean the aisle supports comfortable use. Once the door is open, the person using the cabinet occupies the same zone needed by anyone moving behind them.

The required clearance therefore depends on the cabinet type and the room’s intended use. A private residential kitchen can tolerate more temporary overlap than a shared office pantry, healthcare staff room, or hospitality back bar. In commercial projects, service intensity and egress responsibilities often make a tight arrangement inappropriate even where it can be made to fit.

Start with the cabinet’s operating geometry

A clear plan check starts with actual, not assumed, dimensions. Confirm the case depth, door thickness, overlay, handle projection, hinge opening angle, and the depth of any internal pull-outs. A full-overlay door and a projecting bar pull can extend farther into the aisle than a simple plan symbol suggests.

For hinged doors, show the leaf at its expected open position. Ninety degrees is a useful minimum test, but it is not always the full condition. Many concealed hinges open to 105 or 110 degrees, and some specialty hinges open wider. A door may clear the cabinet face at 90 degrees yet strike a perpendicular wall, appliance handle, or adjacent open door when opened further.

Also check the hinge side. Reversing a door swing can resolve a conflict without changing the cabinet run, but it may create a less intuitive workflow or interfere with a neighboring user. On tall cabinets, the hinge decision is particularly consequential because the leaf occupies a larger sweep and can block adjacent counter space.

Drawer fronts do not create a swing arc, but they are not clearance-free. A fully extended drawer projects approximately its box depth beyond the cabinet face, with the user standing in front of it. Deep drawers, pull-out pantries, trash units, and internal racks should be represented at full extension during coordination. Their operational zone can be more demanding than a standard door.

Recommended clearances for common cabinet conditions

There is no single dimension that solves every cabinet layout. The following planning ranges are useful early coordination benchmarks, subject to project code, manufacturer requirements, and the final user brief.

A working aisle between opposing base cabinets is commonly planned at 42 inches for one cook and 48 inches where two people will work simultaneously. These dimensions are not interchangeable with a general passageway. A 42-inch aisle may allow a cabinet door to open, but it can become congested when a dishwasher, refrigerator, or drawer is also in use.

For a clear passage behind an island or cabinet run, 36 inches is a practical minimum starting point where the route is not a primary work zone. Increase the dimension when the route serves multiple people, connects to an exit path, or sits behind seating. In public-facing and commercial interiors, evaluate the route against the applicable accessibility and life-safety criteria rather than relying on a residential rule of thumb.

At a corner, do not let one door or drawer prevent the adjacent unit from operating. Base-cabinet doors beside a perpendicular return typically need a filler, a reduced door width, or a revised hinge arrangement. The required filler is determined by the actual handle and door projection, not just the cabinet manufacturer’s standard detail. A 1-inch filler can be sufficient in one configuration and inadequate in another.

Tall pantry doors need especially careful review. When open, they can obstruct refrigerator access, a landing area, or a principal route through a compact kitchen. Bi-fold and pocket-door systems reduce the projection into the room, but they introduce different requirements: side clearance for the mechanism, a wider cabinet construction, and more stringent installation tolerances.

Coordinate appliances before finalizing the cabinet run

Appliances are the most frequent source of missed cabinet clearance conflicts because their drawings are reviewed separately from the millwork. Do not rely on appliance rough-in dimensions alone. Use the manufacturer’s current installation information to verify door swing, handle projection, ventilation gaps, required service access, and any stated clearance to adjacent walls or cabinets.

A dishwasher needs more than the width of its opening. Its door projects into the aisle when lowered, and a person loading it needs space in front of that projection. Where an island sits opposite, test the dishwasher in its open position against drawers, seating, and the circulation route. A layout that works with the dishwasher closed may become unusable during daily operation.

Refrigerators deserve the same level of review. French-door, side-by-side, counter-depth, and integrated models all have different clearance behavior. A refrigerator may require side space for a door to open fully enough to remove crisper drawers, while its handles may conflict with an adjacent return panel. Specify the model early if the enclosure is tight. Design intent cannot compensate for an appliance door that cannot open as intended.

Ovens, microwaves, and warming drawers require a similar operational check. For a wall oven, confirm the landing surface, the open-door projection, and the standing zone. In commercial pantry or hospitality applications, consider whether hot equipment doors can open into a route used by staff carrying trays or supplies.

Use elevations and sections, not plan alone

Plan views reveal most horizontal conflicts, but they do not show every issue. Elevations help verify upper-cabinet doors against soffits, pendant fixtures, open shelving, and appliance housings. Sections reveal collisions with ceiling bulkheads, countertop thickness, wall-mounted equipment, and hardware that projects beyond the cabinet face.

This is particularly relevant for lift-up doors. An upper cabinet with an upward-opening flap may require clear space above the cabinet and may conflict with a low ceiling, a bulkhead, or a shelf directly above. The mechanism’s required internal and external clearances should come from the selected hardware supplier, not a generic cabinet detail.

Hardware also changes the result. Knobs, pulls, edge pulls, recessed grips, and integrated channels each produce different projections and hand-clearance needs. A handle that looks minor in elevation can be the point of impact between two doors at a corner. Record the hardware type before releasing millwork for fabrication, especially where clearances are already tight.

Document clearance as a coordination requirement

A reliable cabinet door clearance guide is most useful when it becomes part of the drawing set. On critical plans, show door swings, drawer extension, appliance doors, and required clear floor areas. Add dimensions where an aisle or appliance clearance is a design requirement rather than an incidental result.

In elevations and internal elevations, identify hinge sides, opening types, filler panels, and hardware. For complex joinery, include an enlarged plan or section showing the open condition. This gives the millworker, contractor, and project team a shared basis for checking functionality before installation.

At submittal review, compare the shop drawings against the coordinated appliance schedule and the latest architectural background. A cabinet package may be technically correct on its own terms while no longer matching a revised appliance model, wall thickness, or MEP enclosure. Resolve those changes before materials are cut.

A final field check before handover

Clearance decisions made in design development must survive installation. Before handover, open every door and drawer in the most constrained zones. Test opposing units together, not one at a time. Check appliance doors at their full usable opening, confirm that handles do not collide, and verify that circulation remains credible when the room is occupied.

Where a condition is tight, small adjustments can matter: rehanging a door, changing a pull, limiting a hinge angle, or revising a filler panel. Those are far less disruptive before final sign-off than after occupancy. Treat cabinet operation as a measurable fit-out performance requirement, and the completed space will work as deliberately as it was drawn.
