Kitchen Plumbing Rough In Dimensions Explained

A kitchen wall can look perfectly coordinated on plan and still fail in the field when the sink waste line lands behind a drawer box, a water valve conflicts with a pullout, or a dishwasher connection has no practical route. Kitchen plumbing rough in dimensions are therefore not isolated numbers. They are coordination dimensions that must work with the cabinet system, appliance requirements, structural conditions, and the governing plumbing code.

For designers, the objective is not to prescribe a single universal rough-in layout. It is to issue clear, buildable information and identify the decisions that belong with the plumbing engineer, contractor, cabinetmaker, and appliance supplier before the wall is closed.

Start With the Cabinet, Not the Pipe

Most kitchen plumbing coordination begins at the finished cabinet layout. Confirm the sink cabinet width, sink bowl configuration, countertop depth, cabinet interior, and adjacent appliances before locating the drain or water connections. A centered drain may be appropriate for a single-bowl sink, but it can become problematic with an offset bowl, a large disposal, a filtration unit, or a deep drawer configuration.

A typical base cabinet and countertop assembly results in a finished counter height of about 36 inches above finished floor. Within that envelope, the sink bowl, strainer, tailpiece, P-trap, isolation valves, and flexible supply connections all need room to operate. The rough-in must also remain accessible after the cabinet is installed.

This is why a plumbing dimension should never be copied directly from a generic residential detail without checking the selected cabinetry. A frameless cabinet with internal drawers has a different usable volume from a face-frame cabinet with open doors. The same is true of a sink cabinet designed for a trash pullout or water-treatment equipment.

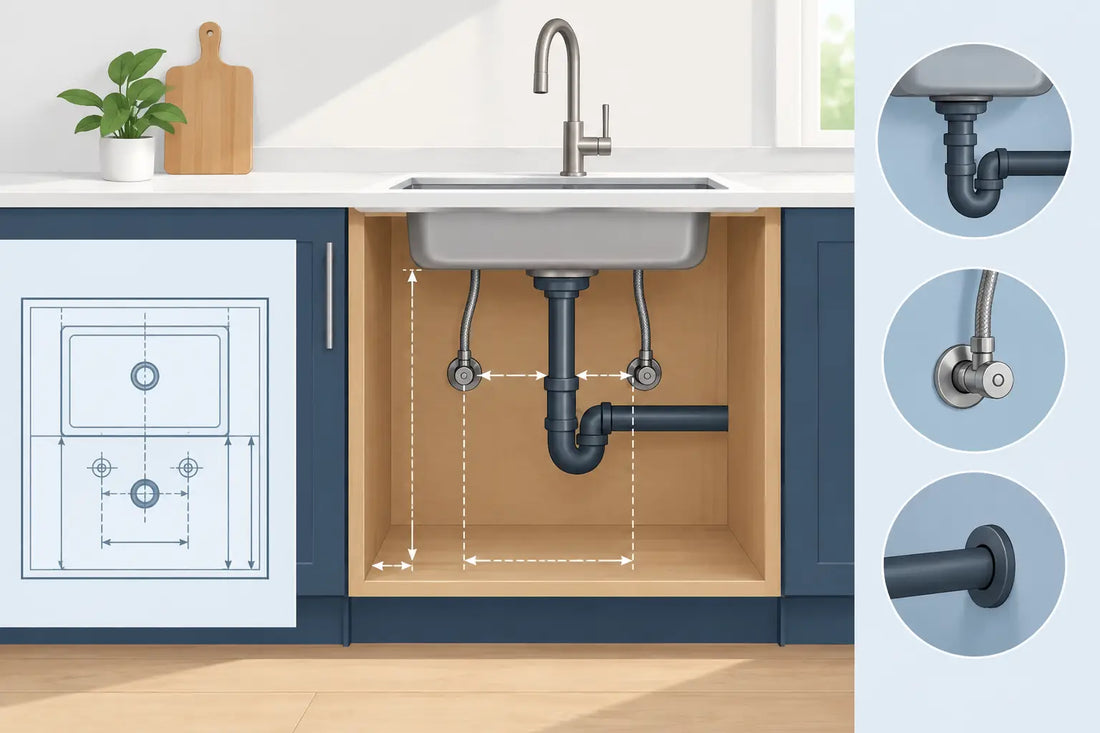

Typical Kitchen Plumbing Rough In Dimensions

The following dimensions are common US starting points for a standard residential kitchen sink. They are coordination references, not a substitute for local code, the contract documents, or the plumber's approved installation requirements.

| Component | Typical starting point | Coordination note |
| --- | --- | --- |
| Sanitary drain centerline | 16 to 20 inches above finished floor | 18 inches is a common target beneath a standard sink cabinet. |
| Hot and cold water supplies | 20 to 22 inches above finished floor | Set high enough for access, while allowing clearance from the sink bowl and drawer hardware. |
| Supply line spacing | Approximately 8 inches apart | Often arranged equally either side of the drain centerline, subject to cabinet constraints. |
| Drain pipe size | Commonly 1-1/2 inches nominal | Local code, fixture count, and commercial use may require a different size. |
| Sink cabinet depth | Typically 24 inches nominal | Verify actual cabinet construction and rear clearance, not nominal depth alone. |

The drain centerline is often shown at 18 inches above finished floor and centered on the sink cabinet. This generally provides workable space for a trap and disposal assembly while staying clear of the cabinet base. But a low bowl, a deep farmhouse sink, or a compact cabinet can make 18 inches unsuitable. In those cases, coordinate the actual sink cut sheet and cabinet shop drawings before fixing the elevation.

Water shutoff valves are commonly placed above the drain connection, around 20 to 22 inches above finished floor. They should be reachable through the cabinet doors without removing a drawer, shelf, or appliance. Avoid locating valves where a disposal body, pullout waste bin, or sink support rail will block operation.

The horizontal position matters as much as elevation. Establish a centerline from the final sink, not merely the cabinet module. If the sink is offset in the countertop, locate the drain to suit the bowl outlet and trap route. A small adjustment on the drawing can prevent an awkward field offset later.

Measure From the Correct Datum

State whether elevations are measured from finished floor or structural slab. In most interior fit-out documentation, finished floor is the useful reference because cabinet toe kicks, resilient flooring, tile build-up, and thresholds affect the installed condition.

Where the project uses multiple floor finishes, verify whether the plumber will rough in before the final floor is complete. The documents should identify the required finished-floor level and any significant build-up. A dimension that is correct from slab can be wrong by enough to affect trap clearance once the finish package is installed.

Coordinate the Drain, Trap, and Vent as a System

The visible trap below the sink is only part of the drainage system. The branch drain needs sufficient fall, a compliant trap arm, and a venting strategy that follows the applicable plumbing code. These requirements vary by jurisdiction and system type, so designers should avoid assuming that a vent can simply be moved to suit a cabinet elevation.

For small-diameter horizontal drainage piping, a slope of 1/4 inch per foot is a common coordination allowance. That fall can quickly consume vertical space where the sink is far from the vent stack or branch connection. In a multi-unit residential project, a commercial tenant fit-out, or a kitchen located over another finished space, this should be resolved early with the plumbing consultant.

Keep the drain connection inside the sink cabinet whenever practical. Routing it into an adjacent cabinet may be necessary for an offset sink or structural obstruction, but it affects storage, access panels, and the cabinetmaker's scope. Show this condition on plans and elevations rather than leaving it as an implied site decision.

A dishwasher drain typically connects to a dishwasher branch tailpiece or disposal fitting and requires a high loop or air gap where required by the authority having jurisdiction. The dishwasher manufacturer's instructions also control the permitted connection arrangement. Coordinate the hose route and connection point with the dishwasher location, especially when the appliance is separated from the sink by a cabinet bank.

Account for Appliances and Accessories

The standard sink rough-in changes quickly when accessories are added. A garbage disposal occupies volume directly below the sink outlet and can push the trap toward the rear or side of the cabinet. A deep single-bowl sink may reduce vertical clearance. Hot-water dispensers, instant filtration systems, reverse-osmosis units, and water softener connections all compete for the same under-sink zone.

Treat these additions as part of the design package, not as owner extras to be resolved after cabinet fabrication. Ask early which accessories are included, where their control boxes sit, whether they need power, and how filters will be replaced. A technically coordinated cabinet can still be unusable if routine filter access requires removing the disposal or disconnecting the trap.

Refrigerator water boxes and ice-maker lines also need deliberate placement. Locate them where the appliance can be pulled out for service and where the valve will not be crushed by the refrigerator back. For an island sink, coordinate water and waste routes with slab penetrations, joist direction, ceiling space below, and any required island venting method.

Residential and Commercial Conditions Are Not Interchangeable

A residential kitchen often relies on a simple sink cabinet rough-in. A commercial kitchen, staff pantry, hospitality bar, or multifamily amenity kitchen may introduce different fixture loads, pipe sizing, venting, cleanout access, grease waste requirements, and accessibility obligations.

Food-service projects require particular caution. Grease interceptors, indirect waste, floor sinks, mop sinks, and health department requirements may govern the layout more strongly than standard kitchen cabinet conventions. Do not carry residential sink dimensions into a food-preparation setting without a coordinated MEP design.

Accessibility can also affect the under-counter zone. Where an accessible sink requires knee and toe clearance, exposed piping protection and insulation may be necessary, while valves and piping must not compromise required clearances. The cabinetry, counter support, and plumbing arrangement should be reviewed together.

A Practical Documentation Method

On the kitchen plan, dimension the sink centerline from fixed room geometry and identify the cabinet number. On the interior elevation, show finished-floor elevations for the sanitary drain and hot and cold supplies. Include pipe sizes where they are part of the design scope, and clearly identify connections that require final coordination with the plumbing drawings.

A separate enlarged plan is worthwhile for dense kitchen walls, islands, and appliance clusters. It should show the cabinet layout, sink position, dishwasher, disposal if known, water filtration equipment, electrical receptacles, and any conflict-prone structural or HVAC elements. This is faster to review than distributing the information across several disconnected sheets.

Before construction, compare the plumbing rough-in against the approved cabinet shop drawings and appliance cut sheets. Check the actual bowl depth, disposal dimensions, valve access, drain route, and drawer clearances. This short review is one of the most effective ways to prevent a finished kitchen from becoming a field modification exercise.

Well-coordinated kitchen plumbing is rarely about memorizing one dimension. It is about using typical dimensions as a disciplined starting point, then testing them against the real cabinet, fixture, and service conditions that will occupy the space.
