Cabinet Construction Details That Prevent Rework

A cabinet elevation can look resolved long before the cabinet is buildable. Cabinet construction details are where the visible design meets material behavior, fabrication tolerances, site conditions, and building services. When those decisions remain implicit, the contractor, millworker, and installer are left to make them during procurement or on site - usually when changes are most expensive.

For interior designers and architects, the objective is not to produce every shop drawing. It is to define the assembly, interfaces, performance expectations, and critical dimensions clearly enough that the intended cabinet can be priced, coordinated, fabricated, and installed without avoidable interpretation.

Start With the Cabinet Type and Its Job

“Cabinetry” is not one construction system. A base cabinet carrying a stone countertop, a full-height pantry within a plasterboard wall, a wall-hung vanity, and an integrated media unit each transfer loads differently and encounter different coordination risks.

Begin by identifying whether the item is freestanding, wall-hung, floor-supported, recessed, or built into an architectural opening. Then establish its primary role. Is it storage, a work surface, a housing for appliances, a wet-area vanity, or a decorative feature wall with concealed access panels? The answer drives the structural support, material selection, fixing method, ventilation requirement, and tolerance strategy.

A wall cabinet, for example, requires a reliable fixing zone and a substrate capable of taking the imposed load. A floor-supported base cabinet may appear less demanding, but its toe kick, leveling arrangement, countertop support, and relationship to finished flooring still need definition. Treating both as generic boxes is a common source of coordination gaps.

Cabinet Construction Details Begin With the Carcass

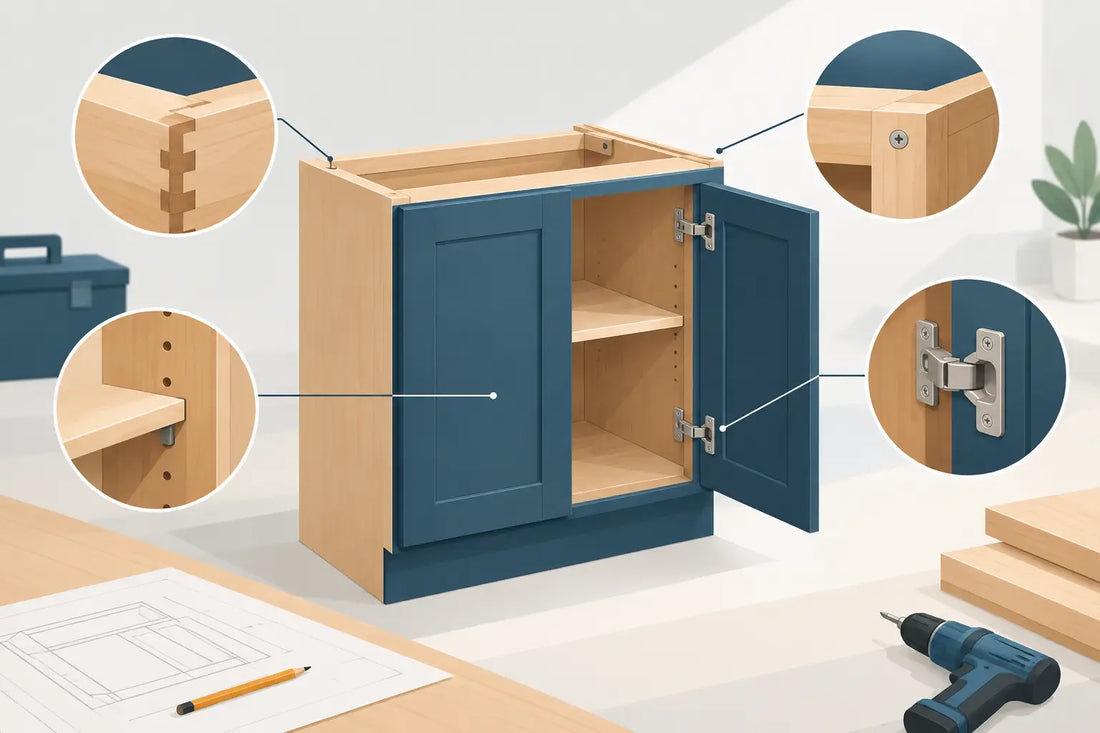

The carcass is the concealed structure that determines whether doors align, drawers run correctly, shelves remain level, and the cabinet survives daily use. Drawings should identify the carcass material, nominal thickness, exposed and concealed edges, back construction, and the method used to join panels.

For most interior projects, manufactured wood panels are specified by type and finish requirement: melamine-faced particleboard, MDF, plywood, or veneer-core panel are all used for different reasons. There is no universal best choice. Particleboard can provide a flat, cost-effective carcass in dry conditioned interiors, while plywood may be preferred where higher screw-holding capacity, lower weight, or moisture resistance is needed. MDF provides a smooth substrate for painted components but is heavy and must be protected from prolonged moisture exposure.

Thickness cannot be considered in isolation. A 3/4-inch panel may be appropriate for a standard cabinet side, but a long unsupported shelf, a tall door, or a countertop support condition may require a thicker member, a metal reinforcement, a reduced span, or an intermediate partition. Specify the performance needed rather than assuming a familiar panel thickness solves every condition.

Back panels deserve particular attention. A thin applied back may only close the cabinet, whereas a recessed and mechanically fixed back can brace the carcass and support wall fixing. If the cabinet is wall-hung, show where the hanging rail, cleat, bracket, or structural backer sits. Do not rely on a note that simply says “fix to wall.” The wall type, fixing zone, and required reinforcement should be coordinated with the architectural and structural information.

Face Frames, Frameless Construction, and Reveals

Frameless European-style construction is common in contemporary fit-out because it maximizes internal storage and supports concealed hinges and runners. Face-frame construction adds a structural and visual frame at the front of the carcass, often suited to more traditional detailing or where a particular door overlay is intended. Both systems can perform well, but they produce different opening sizes, hardware positions, and installation tolerances.

The key drawing question is not which system looks better in an elevation. It is how the selected system controls gaps. State whether doors are full overlay, half overlay, or inset, and dimension the intended reveals between doors, drawers, end panels, and adjacent walls. A 1/8-inch reveal may be achievable in a controlled shop condition, but site-built cabinet runs, uneven walls, and painted finishes can justify a more forgiving gap.

End panels and fillers are not leftover pieces. They are tolerance-management components. A scribed filler at a wall allows the installer to absorb an out-of-plumb condition without narrowing a door gap or cutting into a finished side panel. At the design stage, identify where adjustment is acceptable and where a clean, fixed visual line is non-negotiable.

Define the Interfaces That Cause Rework

Most cabinet failures are not failures of the cabinet itself. They occur where cabinetry meets another system: a stone top, wall finish, floor finish, appliance, lighting channel, plumbing line, or air grille.

At countertops, establish the support arrangement, overhang, substrate requirements, and joint locations. Heavy stone, solid surface, and porcelain slabs have different support needs. An unsupported breakfast-bar overhang may require concealed steel or proprietary brackets, and those brackets need space within the cabinet construction. If the support is only mentioned after fabrication, drawer clearances and leg positions may already be compromised.

At walls, decide whether the cabinet runs to the finished surface, receives a scribed filler, sits within a niche, or is intentionally separated by a shadow gap. A full-height cabinet adjacent to gypsum board also requires a decision about sequence: does the wall finish return behind the cabinet, stop at the cabinet edge, or receive a trim piece? These choices affect both appearance and access for future removal.

At floors, clarify whether base cabinets sit on adjustable legs, a continuous plinth, a wood toe kick, or a metal base. Adjustable legs simplify leveling but require a removable or coordinated toe-kick system. A continuous recessed plinth can create a cleaner line, yet it may be less tolerant of floor variation. In wet areas, the base detail must protect vulnerable panel edges from cleaning water and minor leaks.

Coordinate Services Before Fixing Internal Layouts

Cabinet interiors are often drafted as if they are empty. In kitchens, bars, vanities, utility rooms, and reception counters, they rarely are. Water supplies, waste pipes, traps, valves, electrical outlets, data points, appliance connections, and ventilation routes all consume usable volume.

Show service zones in plan, elevation, and section when they affect cabinet construction. A sink base is not simply a standard base unit with doors. It may need a removable back, cutouts to shelves, a reduced drawer depth, a false drawer front, and accessible isolation valves. A vanity may require a recessed drawer box or offset basin waste. An appliance tower needs verified ventilation clearances and service access based on the actual appliance data, not a generic placeholder.

Access is a design requirement, not an afterthought. If a valve, cleanout, transformer, driver, or junction box sits behind a fixed panel, establish how it will be reached after handover. A removable panel, hinged access door, magnetic grille, or adjacent cabinet opening may be appropriate, but each option must be compatible with the finish and use of the space.

Specify Hardware by Performance, Not Just Appearance

Hardware carries much of the daily load. Hinges, drawer runners, lift systems, pull-out mechanisms, shelf supports, and sliding-door gear should be selected around door size, weight, frequency of use, desired opening angle, and maintenance expectations.

Soft-close hardware is useful, but it is not a complete specification. A wide, heavy drawer may need higher load-rated runners. A tall pantry pull-out demands careful consideration of load, lateral stability, and user reach. Push-to-open doors can preserve a handle-free elevation, but they are less forgiving where doors are heavy, frequently used, or likely to receive accidental contact.

Avoid relying solely on product names in the drawing set. State the required function and minimum performance criteria, then allow the millworker to propose a compatible system where appropriate. For highly visible or unusual applications, identify the exact hardware model and confirm its dimensional requirements before finalizing the cabinet section.

Detail Finishes, Edges, and Moisture Protection

Finish schedules should work with construction details, not sit apart from them. A painted MDF door, timber veneer panel, laminate-faced carcass, and solid timber edge all respond differently to impact, heat, moisture, and movement.

Show which edges are exposed and how they are finished. This is particularly relevant at open shelving, recessed niches, handleless door edges, and cutouts around sinks. In wet or high-use zones, specify sealed cut edges and avoid leaving absorbent board exposed at the base, within plumbing zones, or behind appliances that generate heat or moisture.

Timber movement also deserves respect. Wide solid-wood panels can expand and contract across the grain, particularly near exterior walls or variable humidity conditions. Where a natural timber finish is central to the design, allow for that movement in panel joints and fixing methods rather than forcing a rigid connection that may split or distort.

Use Drawings to Communicate Decisions, Not Decoration

A useful cabinet package normally combines plans for layout and service locations, elevations for door and drawer composition, sections for construction depth and interfaces, and enlarged details for high-risk conditions. Dimensions should locate the cabinet relative to fixed setting-out points, not just describe its overall width.

The most valuable details are often the least glamorous: the end panel against an uneven wall, the countertop support at a waterfall edge, the cabinet-to-ceiling closure, the toe-kick return, the wall-hung fixing zone, and the access panel within a finished surface. These are the places where a polished rendering provides little protection against site decisions.

The Fitout Academy approach is to treat these drawings as coordination tools. A detail is successful when a fabricator understands the intended assembly, a services consultant can verify clearances, and an installer can anticipate the site condition before arriving with finished components.

Before issuing cabinetry for pricing or construction, ask one final practical question: if this cabinet must be leveled, fixed, connected, adjusted, and later maintained, can each step happen without damaging the design intent? The answer will usually reveal the next detail worth drawing.
